Roll Cage Gussets Thickness

The usual recommendation is 3mm thickness however you can use thicker plates to provide more stability.

Roll cage gussets thickness.

Roll cages and bars are especially vital when you are racing or off roading. Custom gussets roll cage accessories tmr customs we offer a range of custom gusset plates that are built to last and look great too. Regardless of which type of gussets are used they must be fully welded all around. Female must use minimum 1 4 inch thick bracket cm or ms welded to each roll cage upright.

Tubing of the same thickness and diameter as the roll cage may be split and formed into gussets and must extend onto each joined tube at least 2 inches but not more than 3 inches. All roll bars must be within 6 of the rear or side of the driver s head extend in height at least 3 above the driver s helmet with driver in normal driving position and be at least as wide as the driver s shoulders or within 1 of the driver s door. Roll cage kits smittybilt jeep roll cage kits use 1020 120 wall dom. Roll bar must be adequately supported or cross braced to prevent forward or lateral collapse.

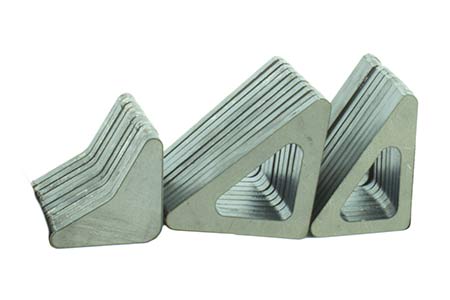

Our selection of roll bar gussets are cnc laser cut from 3 16 plate steel because we know your rig doesn t shy away from the occasional boulder massage. Roll bars for jeeps come standard but the stock bar version is more for looks than safety. Rear braces must be of the same diameter and wall thickness as the roll bar and intersect the roll bar at a point not more than 5 from the top of. If you are a serious off roader roll bars and roll cages for jeeps are crucial for your protection as well as your passengers.

So if you are going to conquer rough terrains or be first on race day then you should strengthen your vehicle. Pins must be within 8 inches of the vertical portion of both the forward and main hoops. Whether you re looking for a gusset to handle your 100 degree tubing joint a joint where a straight tube meets a curved tube or a straight up 90 degree angle we have them in stock and ready to ship. Male clevis must use two minimum 1 8 inch thick brackets cm or ms welded to each roll cage upright.

Roll cage saddle weld gussets for 1 1 2 inch tube 1 16 steel 10 19 99 1 6875 overall height 1 50 overall width steel.
